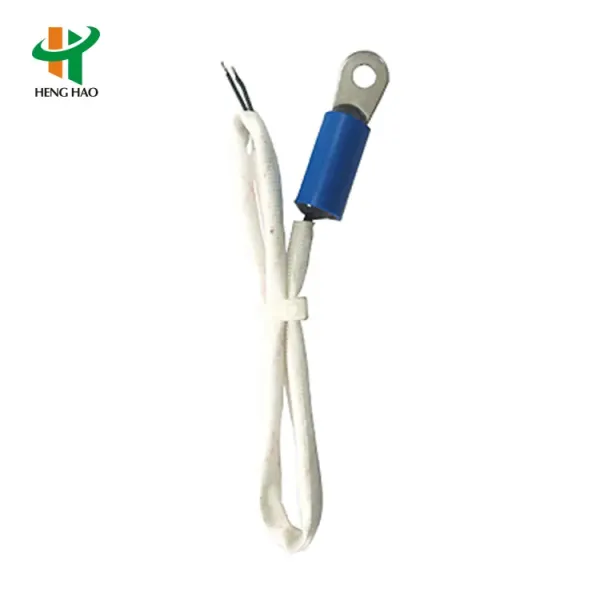

Temperature Sensor Ntc Temperature Probe Thermistor

Certification : CE

MOQ : 1,000

Price : 0.35

Model NO. : NTC

Output Signal : Digital Type

Production Process : Normal Wirewound

Material : Ceramics

Measuring Medium : Humidity

IP Rating : IP67

Life Cycle : 10000 Cycles

Voltage & Current : 9V 0.1A

Contact Type : Normally Closed or Normally Open

Switch Type : Auto Reset or Manual Reset

Temperature Range : 0-250℃

Case : Metal

Specification : 15*16

Nominal Resistance : 5K,8K,10K,15K to 100K

Working Temperature : -40ºC~+250ºC

Contact Now

NTC TEMPERATURE SENSOR

Temperature Sensor Ntc Temperature Probe Thermistor

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	5K,8K,10K,15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1,±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85(material coefficient)(thermal-sensitivity index)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient)	≥0.8mw/ºC	Static in the air
T(thermal time constant)	≤25S	Static in the air
Ta(Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	within working temperature

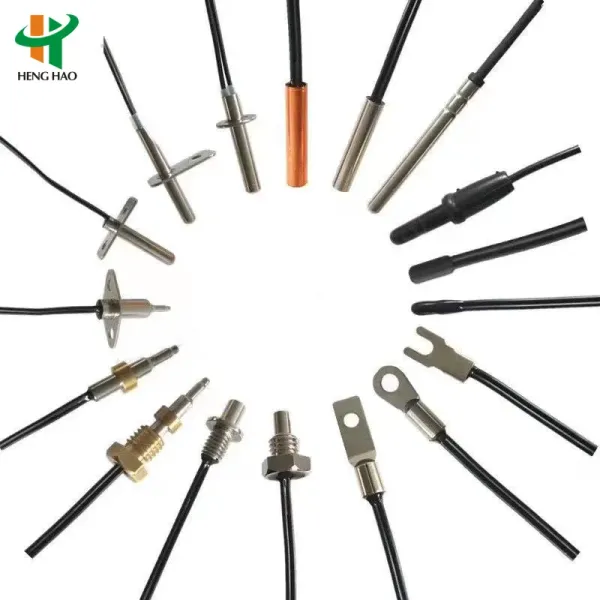

Case and head		Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire		#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal		Can be riveted according to the requirements of various terminals

Services

Your inquiry will be replied within 12 hours;
Well-trained and experienced staff are always at your service.
Unique design products and many private mold product are waiting for your choice.
Strictly protect your private information and your ideas of design.

FAQ

Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
